Special features of the Ecotop series:
- 2-layer insulation concept with 35 mm microporous insulating board
- Particularly high energy efficiency
- Reversible kiln stand, handy and practical
- Pressure spring-supported opening mechanism for the lid
- Power control effected by silent, low-wear solid-state relays with an external cooling element

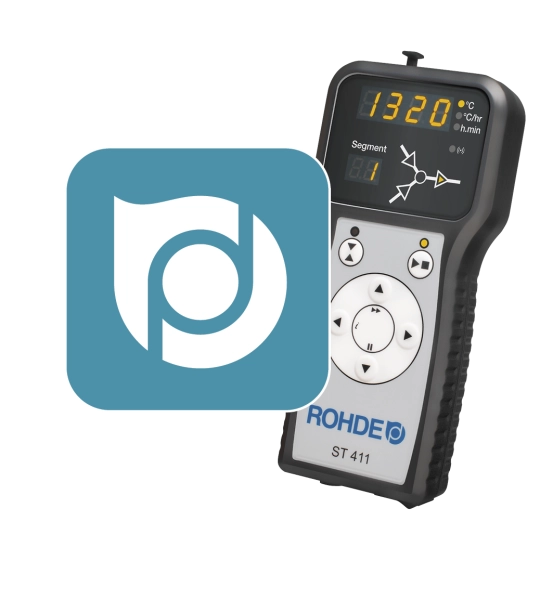

- Comes with ST310 controller as standard – Can be upgraded to the ST411 controller which has 32 heating/cooling ramps and each ramp can have a soak. Both of the controllers can connect to your wifi if within range and then to the Rohde My App.
Features
Long-term application temperature – 1320°C
The kiln is designed for long-term and continuous use at temperatures up to 1290°C which makes it suitable for applications such as bisque, earthenware, onglaze and stoneware firing as well as high-temperature stoneware, soft paste porcelain firings.
Power supply with 230 V electrical connection
The high-quality insulation allows the kiln to be fired safely at stoneware temperatures using a regular 230 V electrical connection (6 kW).
Gas pressure spring-supported opening mechanism for the lid
The sturdy lid construction is supported by gas pressure springs that allow easy, effortless and safe opening of the lid.
Reversible kiln stand, handy and practical
The kiln stand can be turned upside-down. This allows the kiln to be used at two different working heights. The toploader can be adjusted to your individual needs and makes loading and unloading of the firing chamber much easier on the back.
Integrated safety due to safety switch
A door contact switch automatically isolates the heating elements from the power supply when the kiln opens. The integrated overtemperature protection prevents damage to electrical components.
NEW: Particularly high energy efficiency

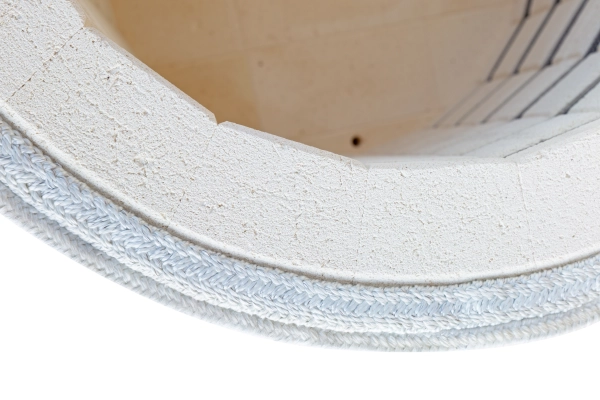

The kiln is currently one of the most economical kilns on the market thanks to a unique, 2-layer insulation concept with a 35 mm microporous insulating board.

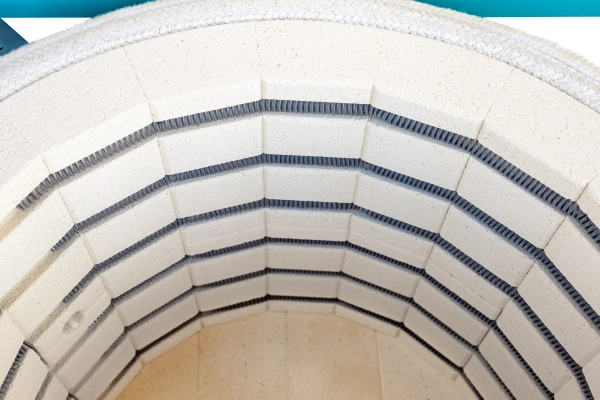

High-quality heating elements
With the heating elements made from “Kanthal A1” we attach great importance to a low surface load and a careful production. The heating elements are reliable and durable thanks to a sufficient reserve capacity in the calculation.
3-year warranty
We produce each kiln by hand and keep to strict quality guidelines. Therefore, we offer a voluntary 36-months warranty to extend legal warranty regulations.
Dimensions
Volume: 80 litres
Int. dimensions (w x d x h): Ø470 x 455 mm
Ext. dimensions (W x D x H): 925 x 795 x 925 mm
Weight: 100 kg
Optional Kiln Furniture Set
- 4 x Shelves – 420mm x 18mm
- 9 x 25mm props
- 9 x 50mm props
- 9 x 75mm props
- 9 x 100mm props
